Cryogenic Check Valve

Ability Engineering Technology, Inc. utilizes and provides a cryogenic check valve that has been well-established as a go-to solution for cryogenic vapor and liquid flow direction management.

The Check Valve is designed to be installed in a vertical position and harnesses gravity to return back to a closed position every time.
With a fully welded construction the check valve body is guaranteed to seal and is approved for helium checking services.

The AET Cryogenic Check Valve is also beneficial to decrease thermal acoustical oscillations in helium and hydrogen systems. For more information on the effects of thermal acoustic oscillations, The Cryogenic Society of America has an article written by Dr. John Weisend that can be seen on their site here.

Design Information:
MAWP: 600PSI @ 200 Degrees Farenheit
MDMT: -452 Degrees Farenheit
Seal Material: Teflon
Available in 0.5 Inch Socket Weld, 0.75 Inch Butt / Socket Weld, and 1 Inch Butt Weld Sizes.
Material of construction is Stainless Steel 304SS standard, with other materials available upon request.

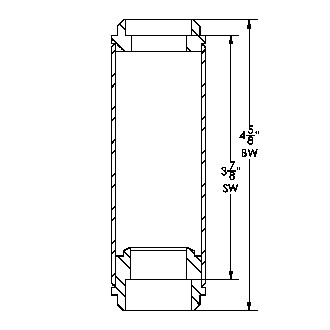

For design purposes, the check valve in BW Configuration is 4.625″ weld to weld length, and in socket weld condition 3.875″ linear pipe space.

External 3D model for positioning available upon request.
